Product Description

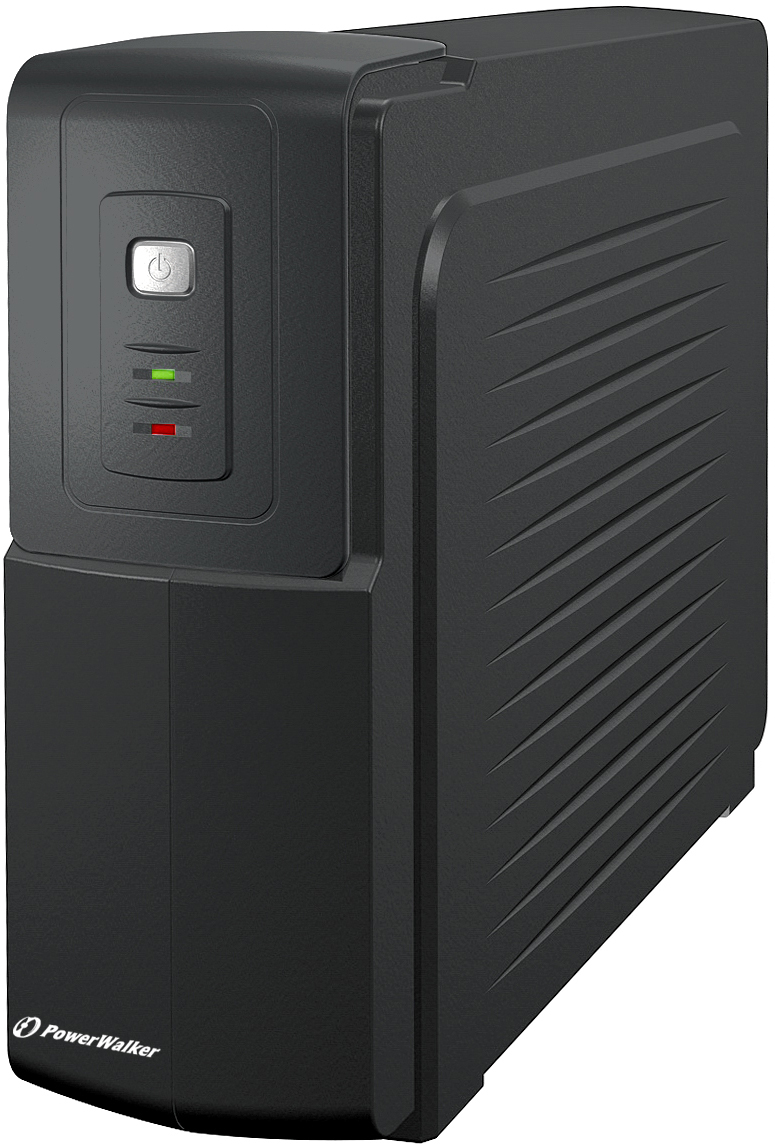

PowerWalker VFD 600 (CEE 7/3)

Art-No: 10120401
EAN: 4260074970562

Surge protection on phone line and modem
Type F (CEE 7/3) sockets
Highly compact and lightweight

PowerWalker VFD 600-1000 CEE 7/3 Series is a standby/offline UPS which provides secure protection and reliable and cost-effective backup power. The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ11/RJ45 surge protection, and green power function for energy saving. Its pro-active audible warning reminds you the abnormal condition and ensures your connected equipment. This UPS provides clean and stable power protection to connected equipment and is perfect for home and small office application.

Type F

600VA

1000VA

General features
Type	Offline
Power capacity	600VA / 300W
Output Power Factor	0.50
Input
Input Voltage Range	170-280 VAC
Frequency (Synchronized Range)	50Hz or 60Hz
Output
Nominal Output Voltage	230 VAC
Voltage Regulation (Bat. Mod.)	±10%
Frequency (Battery Mode)	±1Hz
Technical details
Transfer Time [AC to Battery]	2-6ms
Overload Capacity	N/A
LED Indicators	AC Mode: Green LED Battery Mode: Green LED flashing (4sec interval) Low Battery: Green LED flashing (1sec interval) Fault: RED LED Battery weak: RED LED flashing (2sec interval) Battery faulty: RED LED flashing (3x interval)
Efficiency
LINE mode full Load	99.0%
Batteries and autonomy time
Batteries	1x 12V/7Ah
DC Voltage	1 x 12V
Recharge Time	10h to 90%
Full Load Backup Time	1min
Half Load Backup Time	7.5min
Connections and communication
CEE 7/3 (Type F) Outlet	2
Input	CEE 7/7
RJ-45/RJ-11 protection	Yes
Environment
Noise Level	No Fan
Temperature	0°C – 40°C
Humidity	0% - 90% RH (non-condensing)
Logistics
Package Content	UPS, Manual
Manual Languages	EN/DE/FR/ES/IT/PT/SE/FI/NO/TR/RU/UA/BY/PL/CZ/HR/HU/BG/KZ/SR
EAN	4260074970562
Width	81 mm
Height	185 mm
Depth	231 mm
Weight	3.8 kg
Giftbox - Width	126 mm
Giftbox - Height	224 mm
Giftbox - Depth	285 mm
Giftbox - Weight	3.8 kg
Carton - Width	580 mm
Carton - Height	402 mm
Carton - Depth	250 mm
Carton - Weight	11.5 kg
Pcs. per box	6
Pcs. per layer	24
Pcs. per pal	192
