Product Description

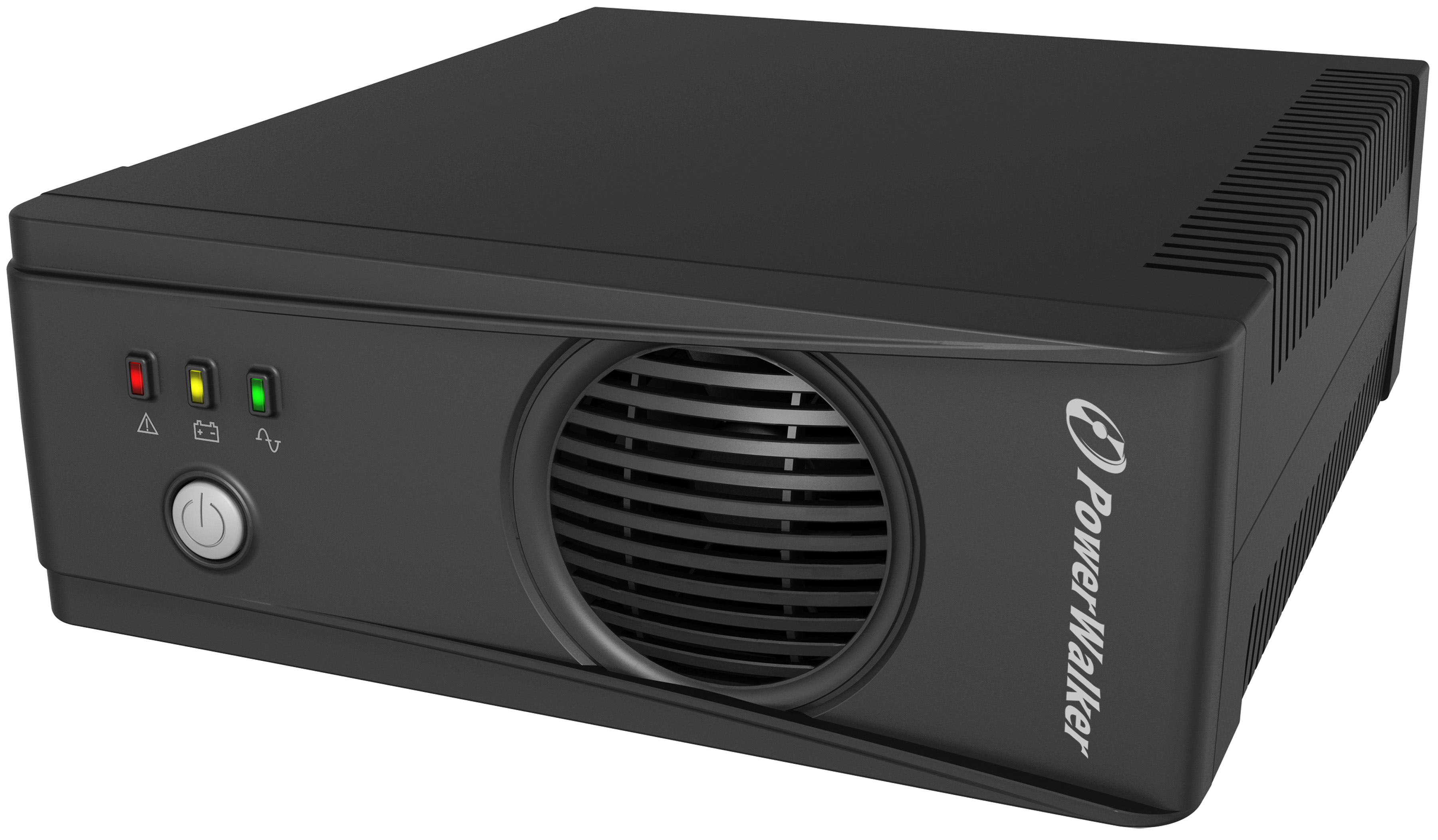

PowerWalker Inverter 1000 FR

Art-No: 10120211
EAN: 4260074976076

Selectable input voltage range for home appliances and personal computers
Fully automatic and silent operation
3-steps intelligent charging control to reduce recharging time with strong 10A super charger

The Inverter/Charger system converts DC power to AC power with amazing transfer efficiency. Appliances such TVs, stereos, notebook computers can be connected for the uninterruptible power. When encountering utility power failure, this series will transfer from “LINE mode” to “Inverter mode” for acquiring the power from battery supply. With the continuous output and compact design, this series is perfect for any home or SMB (small medium business) environment.
• User selectable for accepting wider input voltage range
• 3-steps intelligent charging control to reduce recharging time
• Off mode charging

Type E

1000VA

2000VA

General features
Type	Inverter
Power capacity	1000VA / 600W
Output Power Factor	0.60
Input
Input Voltage Range	170-280 VAC (Narrow Range); 90-280 VAC (Wide Range)
Frequency (Synchronized Range)	50Hz or 60Hz
Output
Nominal Output Voltage	230 VAC
Voltage Regulation (Bat. Mod.)	-18% / +10%
Frequency (Battery Mode)	±0,5Hz
Technical details
Transfer Time [AC to Battery]	20ms typical; 40ms maximal
Overload Capacity	N/A
Charger	10A ± 1A Three stage profile (CC/CV/Floating) CC=Constant Current CV=Constant Voltage
Protection	Overcharge Protection 16V ± 0.4V; Discharge, Overload; Short-circuit
Fan Logic	Auto: OFF: in LINE mode if charge current below 3A (±1A); ON: in battery mode and line mode if charge current above 3A (±1A)
LED Indicators	AC Mode - Green lightning Battery Mode - Yellow lightning Bat. Charging Mode - Green flashing every 2 second Overload - Red flashing every 0.5 second Fault - Red lightning
Efficiency
LINE mode full Load	95.0%
Batteries and autonomy time
Batteries	Designed to work with external batteries. Batteries are not included
DC Voltage	1 x 12V
Connections and communication
CEE 7/5 (Type E) Outlet	1
Input	C14
Environment
Noise Level	< 50dB
Temperature	0°C – 40°C
Humidity	0% - 90% RH (non-condensing)
Logistics
Package Content	Inverter, Manual, DC Cable, Input Power Cable
Manual Languages	EN/DE/FR/RU
EAN	4260074976076
Width	255 mm
Height	80 mm
Depth	224 mm
Weight	2.3 kg
Giftbox - Width	322 mm
Giftbox - Height	123 mm
Giftbox - Depth	266 mm
Giftbox - Weight	2.9 kg
Carton - Width	1140 mm
Carton - Height	290 mm
Carton - Depth	350 mm
Carton - Weight	27.2 kg
Pcs. per box	9
Pcs. per layer	27
Pcs. per pal	189

Name	Product Description	Picture
IEC Cable 10A C13/C14 (180cm) 0.75mm² Item Number: 91010013 EAN: 4260074976274	Additional power cable ...
EU Input Power Cable C13 Item Number: 91010017 EAN: 4260074976465	Additional power cable ...
UK Input Power Cable C13 (180cm) Item Number: 91010029 EAN: 4260074975826	Additional power cable ...

	Datasheet
	Common Manual - English
	Common Manual [DE] [DK] [EN] [ES] [FI] [FR] [IT] [NL] [NO] [PL] [PT] [RO] [RU] [SE] [SI]
	PowerWalker Inverter 1000-2000 - English
	PowerWalker Inverter 1000-2000 [DE] [EN] [FR] [RU]
