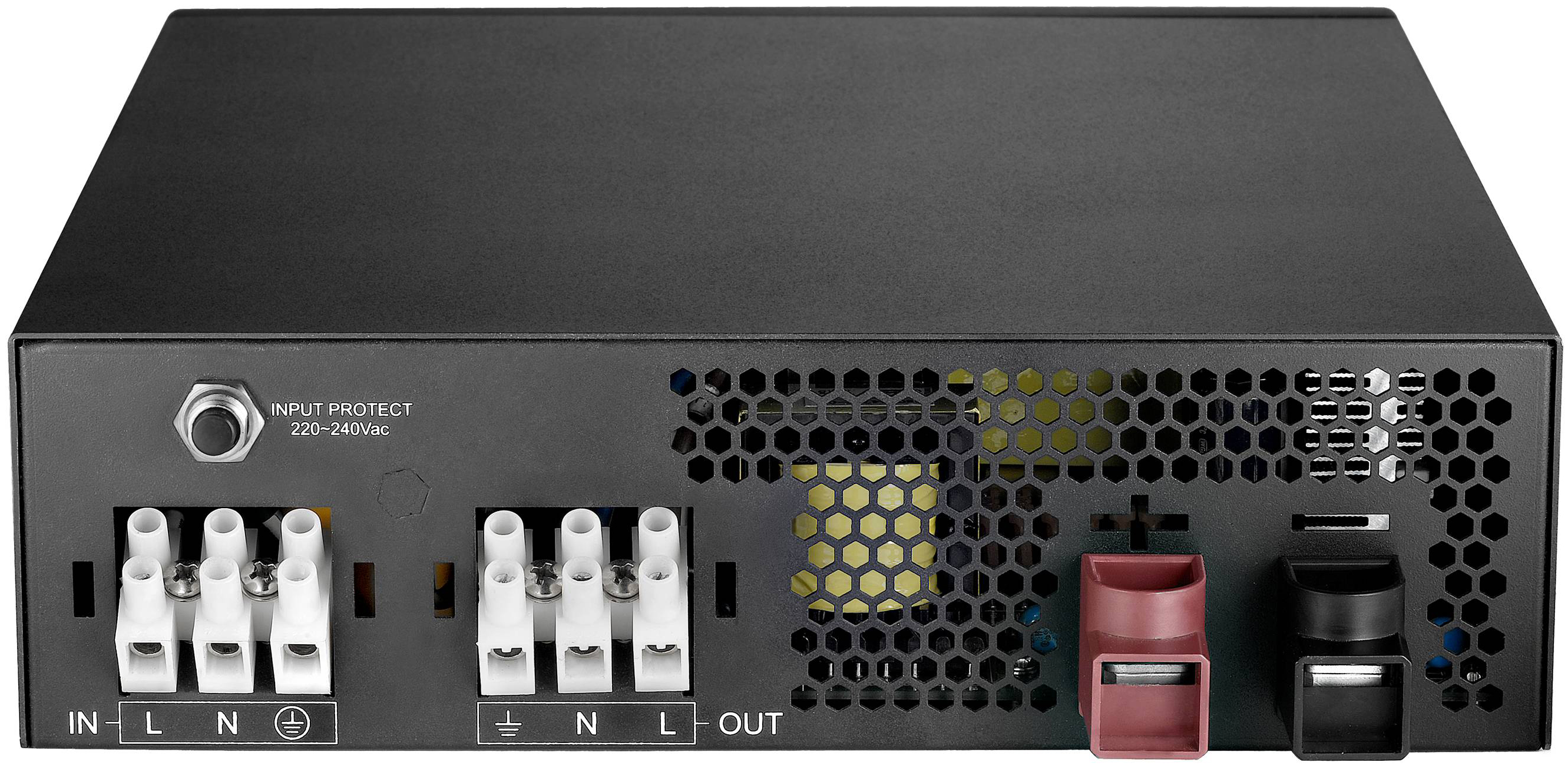

PowerWalker Inverter 3000 PSW
Art-No: 10120209EAN: 4260074975963Pure Sine Wave for wide range of applications and harsh environment LCD display for status view and Inverter settings Highly efficient (>90%) DC-to-AC conversion The PowerWalker Inverter 3000-5000 PSW is a Pure Sine Wave Inverter/Charger system that adopts superior features and it is designed with the highest standards in the industry. The high frequency structure reduces the size and achieves the highest power density in the market. Comprehensive LCD display provides system status, and user-friendly panel eases program settings. Designed for diverse applications, this Inverter promises to fulfil the demands from any home or SMB to heavy-duty industrial environment.
Technical specification
Accessories
Downloads
Similar Models Compatible products
General features Type Inverter Power capacity 3000VA / 2400W Output Power Factor 0.80 Input Input Voltage Range 170-280 VAC (Narrow Range); 90-280 VAC (Wide Range) Frequency (Synchronized Range) 50Hz or 60Hz Output Nominal Output Voltage 230 VAC Pure Sine Wave Yes Voltage Regulation (Bat. Mod.) ±10% Frequency (Battery Mode) ±0,1Hz Technical details Surge protection 6000VA and motor load capacity 1.5HP Transfer Time [AC to Battery] 10ms Overload Capacity N/A Charger 20A ± 2A Protection Overcharge Protection 30V; Discharge, Overload; Short-circuit; Input low voltage, Input over voltage, Over temperature Fan Logic Auto: LCD Indicators status view and Inverter settings Efficiency LINE mode full Load 95.0% BATTERY mode full Load 90.0% Batteries and autonomy time Batteries Designed to work with external batteries. Batteries are not included DC Voltage 2 x 12V Connections and communication Terminal Output 1 Input Terminal Environment Noise Level < 60dB Temperature 0°C – 45°C Humidity 5% - 95% RH (non-condensing) Logistics Package Content Inverter, Manual Manual Languages EN/RU EAN 4260074975963 Width 269 mm Height 76 mm Depth 294 mm Weight 4.9 kg Giftbox - Width 340 mm Giftbox - Height 160 mm Giftbox - Depth 395 mm Giftbox - Weight 5.9 kg Pcs. per box 1 Pcs. per layer 6 Pcs. per pal 72
